Moza R5 review: the 5.5Nm direct-drive bundle
Researched overview Manufacturer listings and owner reports, with no hands-on testing.

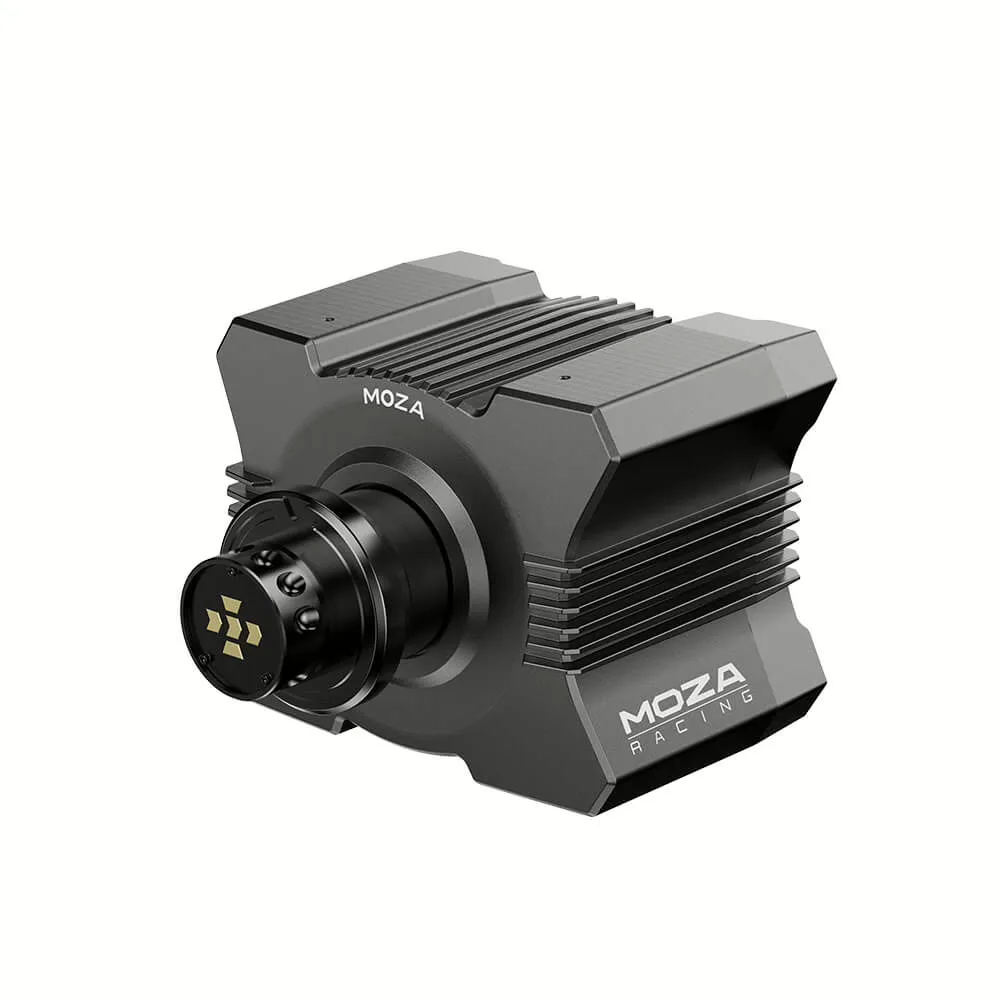

The Moza R5 makes 5.5Nm of direct-drive torque and ships in a $599 Racing Bundle with a wheel and pedals already in the box. Real direct drive, the parts to drive it, and the most upgradeable entry ecosystem: that combination is why it’s the base most people should start on. The motor bolts the rim straight to the shaft, so the gear lash and plastic grind of a G29 are gone, and fine texture like kerb edges and the front tire letting go survives all the way to your hands.
| Drive type | Direct drive |
|---|---|
| Peak torque | 5.5Nm |
| Price | $599 Racing Bundle (base + ES wheel + SR-P Lite pedals + table clamp); sold as a bundle, and frequently discounted. Moza also sells the base in a $549 R5 Trucking Bundle with a 400mm TSW truck wheel |
| Platforms | PC; Xbox only with the Xbox-licensed MOZA ESX rim (chip is in the wheel). No PlayStation. |
| Quick release | Moza QR; peripherals chain into the base over one cable |
| Software | Moza Pit House |
| Best for | A first direct drive off a controller or G29 |
Who it’s for
Section titled “Who it’s for”A first direct drive for someone coming off a controller or a Logitech G29, bought as one complete box.
Buy it if:
- You want a working setup in a single purchase: base, wheel, and pedals together.
- You want an upgrade path. The ES wheel and SR-P Lite pedals carry over when you swap the base later.
- You like single-cable peripherals, with the shifter, dash, and pedals plugged into the base.
Not the one if you already want heavy GT3 weight (start at the Moza R9) or you race on PlayStation (there’s no PS path; see the Fanatec GT DD Pro).
What it’s like to drive
Section titled “What it’s like to drive”The jump off gears. 5.5Nm doesn’t sound like much next to a 12Nm flagship, but the jump off gears is the one you feel. The car loads the front under braking and the rear goes light over a kerb. A G29 puts a gear train between the motor and the rim, and the backlash and added inertia in those gears absorb the small fast changes before they reach your hands.
Where it tops out. For GT and formula cars in iRacing, 5.5Nm is genuinely usable. Set the base near its ceiling and trim the in-game gain to avoid clipping. The per-base FFB guide covers the Moza settings to change first.
Watch-outs
Section titled “Watch-outs”- 5.5Nm is the ceiling, and it’s a real one. If you already know you want heavy GT3 weight, the Moza R9 at 9Nm saves you a second purchase. The recurring forum advice is blunt: buy the R9, skip the regret. The catch is that the R9 is $349 base only, so a rim and pedals come out of the same budget: $139 for Moza’s ESX wheel and $149 for the SRP2 pedals takes it to $637, $38 above this bundle. The R9 ships no clamp either, so on a desk with no cockpit it is $686 against this bundle’s $599, a gap of $87.
- Pit House can override you. Moza’s software is good and improving, but a misconfigured profile can silently override per-car degrees of rotation and FFB in iRacing and Assetto Corsa. Set it once, deliberately, and leave it.
- No PlayStation. PC, plus Xbox once you add the ESX rim.
- A desk clamp is fine here. At 5.5Nm you don’t yet need an aluminum-profile rig. You will the moment you push past ~10Nm, so factor the mount into any upgrade plan.
Alternatives to consider
Section titled “Alternatives to consider”- Moza R9: $349 for 9Nm, base only, and $637 once an ESX wheel and SRP2 pedals are on it. The buy-once pick if you’d rather put the money into the motor.
- Fanatec CSL DD: 5Nm with a Boost Kit path to 8Nm, and the Fanatec rim ecosystem if you’re on Xbox.
- Simagic Alpha EVO Sport: 9Nm from a zero-cogging motor for ~$399 base, PC only, if the motor matters more to you than a bundled wheel and pedals.
- Cammus C5: cheaper still at ~$250-330 if budget is the hard limit and you’ll accept a smaller ecosystem.
Whichever base you land on, spend the next dollar on a load-cell brake before you chase more torque, because braking consistency moves your lap times more than a few extra Nm. The buying guide by budget shows where the R5 fits the full upgrade path.
Which platforms it works on
- PC
- Yes“Platform: PC” “Yes, the R5 Bundle is plug-and-play with Windows PCs. All necessary cables and tools are included.” Moza Racing’s own listing, checked July 2026.The first line is the spec accordion headed “MOZA R5 DD Wheelbase”. The second is the opening of Moza's answer to its own question “Is the bundle plug-and-play? How easy is setup and installation?”, which runs on about the desk clamp and the quick release.
- PlayStation
- Listing does not say
- Xbox
- Listing does not say
- Console license
- Not recorded
- How it connects
- Plugs into a computer over USB“Accessories: User manual, Warranty card, Power supply, USB cable, Toolkit” “USB Refresh Rate: 1000Hz” “Yes, the R5 Bundle is plug-and-play with Windows PCs. All necessary cables and tools are included.”Moza Racing’s own listing, checked July 2026.The first two lines are the spec accordion headed “MOZA R5 DD Wheelbase”, which puts a USB cable in the box beside the “Platform: PC” line the PC answer above quotes. The third is Moza's own answer to “Is the bundle plug-and-play? How easy is setup and installation?”, and it carries this field on the one Moza base whose interface line names no USB at all: that line reads “Power, Data, Display, Pedals, Wheel Input”. Nothing on the listing states what the wheel or the pedals in this box do on another brand's base.
Moza names no console on either R5 listing. Neither “Xbox” nor “PlayStation” nor a console generation appears anywhere on the Racing Bundle page or on the Trucking Bundle page, so neither says anything about whether either works.
What’s in the box
The options this product is sold as do not ship the same box, so each list below is one option’s own, read off that option’s own listing.
The Racing Bundle option
- MOZA R5 DD Wheelbase * 1
- ES Steering Wheel * 1
- SR-P Lite Pedals (No Clutch) * 1
- Table Clamp
- Power Adapter
- Power Cord
- USB Cable
- Toolkit * 1
- User Manual
- Warranty Card
The Trucking Bundle option
- R5 DD Base * 1
- TSW Truck Wheel * 1
- SR-P Lite Pedals (No Clutch) * 1
- Clamp for Truck Wheel * 1
- Power Adapter * 1
- Power Cord
- USB Cable
- User Manual
- Warranty Card
- MOZA Stickers
What that covers
- Wheel
- Included“ES Steering Wheel * 1” “Size: 11 inches”The second line is that wheel's own spec on the same listing.
- Pedals
- Included“SR-P Lite Pedals (No Clutch) * 1”The listing states no pedal count for the set.
- Clutch
- Not in the box“SR-P Lite Pedals (No Clutch) * 1”Moza's own name for the set in the box list settles it, and no clutch pedal appears anywhere else in that list.
- Power supply
- Included“Power Adapter” “Power Cord”
- Quick release
- Included“Quick Release: Supported” “Disassembly method: Quick Release System”The second line is the bundled wheel's spec, so the wheel in this box comes off by a quick release system, and the first is the R5 base's, so the base it ships beside works with one. The pair mounts with nothing bought.
- Desk clamp
- Included“Table Clamp” “Desktop Mounting Clip: Standard”The first line is the box list and the second is the base's spec.
- Cables
- Included“USB Cable”
- Mounting hardware
- Listing does not say“Mounting Method: 4 holes on the bottom”That is the base's hole pattern rather than hardware. The box list carries a Toolkit and no bolts, T-nuts, washers, or plates, and it does not say what the Toolkit holds, so what a rig would need is unsettled. What fixes an R5 to a desk is the table clamp above, and what keeps the pedals put is the anti-slip pad the pedal spec calls included.
How it mounts
- Mounting pattern
- Four-hole bottom mount“Mounting Method: 4 holes on the bottom” “Desktop Mounting Clip: Standard”Moza Racing’s own listing, checked July 2026.Moza's spec names four holes underneath and a desktop clip as standard. It gives no bolt circle, no hole spacing, and no thread size, so whether a particular rig plate lines up is a question this listing does not answer.
- Desk or rig
- Desk clamp“Use the R5 table clamp that comes with the bundle to mount the MOZA R5 to a table or desk.” “Is the R5 Bundle suitable for home or limited-space setups?” “Yes. The R5 Bundle includes a desktop mounting clamp, making it ideal for users who do not have a full racing cockpit. Its compact design, combined with aviation-grade aluminum construction, ensures maximum performance without compromising on space or stability.”Moza Racing’s own listing, checked July 2026.The first is Moza's "Race in Limited Space" block on this bundle's listing. The second and third are its own question and its whole answer, from the FAQ accordions on the same page.Moza's answer is a desk, and the clamp that makes it one is in the box, which is what the clamp line under “What’s in the box” above records. Nothing on the listing names a rig or a cockpit the R5 can be fitted to, which is a gap in Moza's copy rather than a limit: the same spec names four holes underneath.
Optional upgrades
“Can I upgrade or expand my setup later on?” “Definitely. The R5 base is compatible with all MOZA steering wheels and accessories, allowing you to expand your rig with formula wheels, load cell pedals, handbrakes, shifters, and more. Firmware updates for all devices can be managed through a one-click upgrade feature within MOZA Pit House.” Moza Racing’s own words, naming no part, checked July 2026.
Formula wheels, load cell pedals, handbrakes, and shifters are classes of hardware, and the answer names no part. Its last sentence is about firmware. The parts this listing does offer beside the bundle sit under the heading “What R5 Racers Buy Together”, which says what other buyers ordered rather than what upgrades an R5.
Frequently asked questions
Is the Moza R5 enough torque to start with?
Yes. 5.5Nm is more than double a Logitech G29 and plenty to feel weight transfer, understeer, and the rear stepping out. Most drivers don't out-grow 5.5Nm for months, and the jump from a gear wheel to any direct drive is far bigger than the jump from 5.5Nm to 9Nm. The Moza R9 is $349 for 9Nm and saves you a second base, but it's base only: add Moza's $139 ESX wheel and $149 SRP2 pedals and the working total is $637, against the R5 bundle's $599. The R5 is the one-purchase route, and it's genuine direct drive.
What comes in the Moza R5 Racing Bundle?
Ten items on Moza's own box list: the R5 DD wheelbase, the ES steering wheel, the SR-P Lite pedals with no clutch, a table clamp, a power adapter and cord, a USB cable, a toolkit, and the paperwork (Moza, checked 28 July 2026). Moza sells the R5 as a bundle rather than a bare base, which is fine: the wheel and pedals carry over when you upgrade the base later, so you keep the ecosystem and only swap the motor. The same listing offers the base in a second box, the $549 R5 Trucking Bundle, which keeps the SR-P Lite pedals and swaps the ES wheel for a 400mm TSW truck wheel and the table clamp for a clamp for that wheel (Moza, checked 28 July 2026). Moza publishes no revision marker for the base, the ES, or the SR-P Lite, so there is no generation to match when you buy.
Moza R5 or Fanatec CSL DD?
Close call. The R5 wins on out-of-the-box value, with a base, wheel, and pedals for $599, plus the single-cable Moza ecosystem. The Fanatec CSL DD wins if you want the Boost Kit path to 8Nm or you're on Xbox with Fanatec rims. Both are real direct drive, so pick the ecosystem you want to live in.
Does the Moza R5 work on Xbox or PlayStation?
PC always. Xbox works only if you add the Xbox-licensed MOZA ESX rim, because the Xbox chip lives in the wheel, not the base. There is no PlayStation path for the R5. For PS5 look at the Fanatec GT DD Pro, Logitech RS50, or Thrustmaster T598.
