Moza R12 review: 12Nm of direct drive on a compact base

Researched overview Manufacturer listings and owner reports, with no hands-on testing.

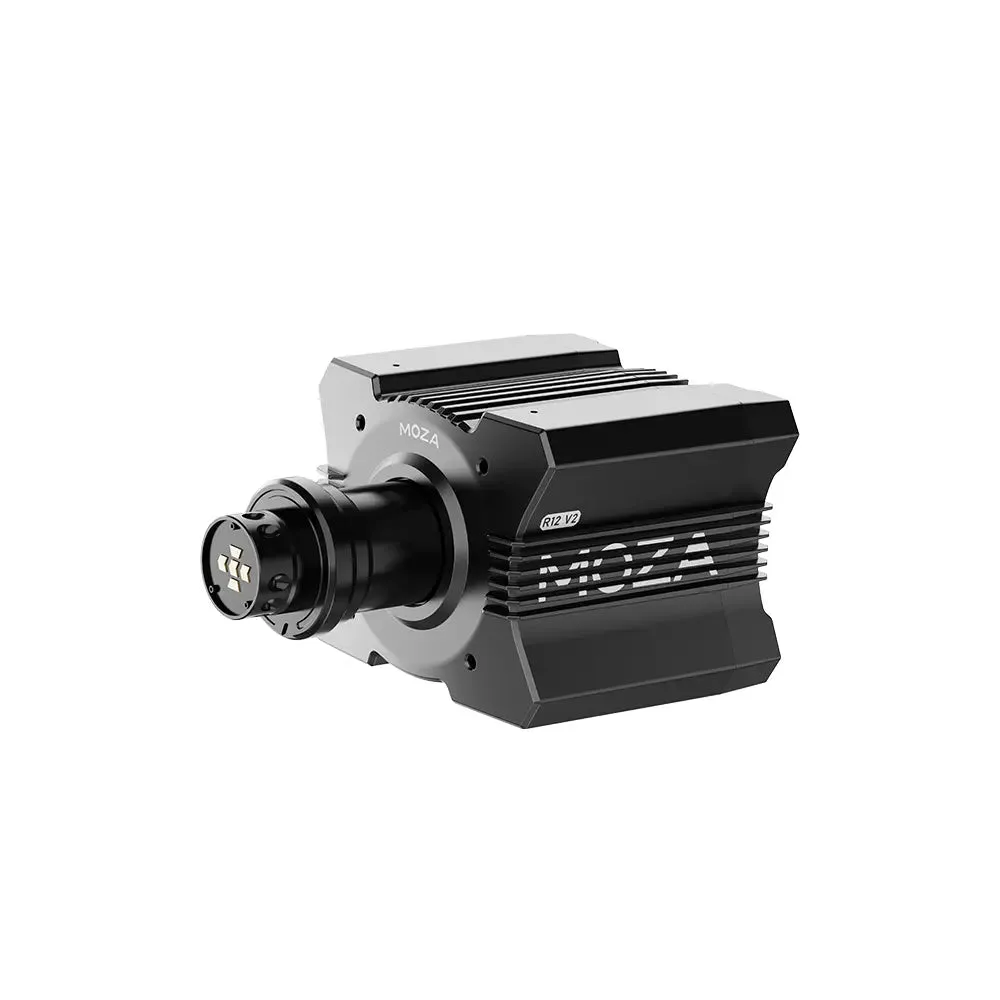

Moza R12 direct-drive wheel base, product view showing the compact integrated housing and quick-release shaft — Image: Moza Racing.

The Moza R12 V2 makes 12Nm of direct-drive torque from a compact, integrated base, and sells base only for $469. That’s a lot of force in a small housing: 12Nm is enough to load up heavy GT3 and high-downforce cars without running out of headroom, and the integrated design bolts to a standard 4-hole mount instead of needing a separate motor box. A 21-bit encoder resolves fine texture, and hand-off (crash) protection cuts the motor if you let go in a spin, so the wheel doesn’t spin out of your hands. Moza’s R12 support page puts the V1’s encoder at 15-bit and the V2’s at 21-bit (checked July 2026), so the 21-bit figure belongs to the V2. Buy it only if you have or will build a rigid rig; on a desk clamp 12Nm flexes and the feel smears. It’s base only, so budget for a rim too.

Revision	V2, the only R12 either Moza storefront sells; the 15-bit R12 V1 is off both stores and still on Moza's compatibility chart
Drive type	Direct drive
Peak torque	12Nm
Price	$469 base only, and frequently discounted; steering wheel sold separately
Platforms	PC; Xbox with the MOZA ESX rim (chip is in the wheel). No PlayStation.
Quick release	MOZA QR; USB 1000Hz; standard 4-hole mount
Software	MOZA Pit House (19-point FFB tuning)
Best for	A stiff rig that wants torque headroom

Who it’s for

Torque headroom over the 9Nm class for the driver who has a stiff rig, or is building one.

Buy it if:

You have or will build a rigid rig and want headroom: 12Nm covers heavy GT3, prototype, and high-downforce cars with margin to spare.
You want to dial the feel per car: 19-point FFB tuning in MOZA Pit House and broad title support.
You want a compact base with crash safety: the integrated housing bolts to a standard 4-hole mount, and hand-off protection cuts torque in a big spin rather than wrenching the wheel.
You’re on Xbox: add an ESX rim.

Not the one if you don’t have a stiff rig (the Moza R9 at 9Nm is the better buy) or you race on PlayStation (there’s no PS path; see the Fanatec GT DD Pro).

What it’s like to drive

Weight to manage. 12Nm is firmly into the range where you brace against the wheel through a fast corner. The front loads hard under braking, and the rear’s rotation comes through with weight you have to manage, not just notice.

Detail under the force. The 21-bit encoder keeps the fine detail intact under that force, so the extra strength doesn’t bury kerb texture or the front-end signal that the tires are about to slide.

Shaping the curve. The 19-point tuning in Pit House lets you soften the center and keep the loaded feel, or pull back peak torque per car. Set the base near its ceiling and trim in-game gain to avoid clipping; the per-base FFB guide covers Moza settings.

Watch-outs

12Nm will flex a desk clamp or a cheap rig. It wants a rigid aluminum-profile rig and solid mounting. On a flimsy mount the feel smears and the whole desk rattles. If you don’t have a stiff rig, the Moza R9 at 9Nm is the better buy.
Base only. No wheel, pedals, or clamp in the box. Budget for a rim.
The R12 V1 is off both stores, and the encoder is the difference. Moza’s global store sold an R12 V1 at /products/r12v1-wheelbase on 26 July 2026 and returns a 404 there on 31 July 2026, and neither the US nor the global product sitemap carries the URL. Moza’s R12 support page still documents both revisions: the V2 “upgrades the encoder from 15-bit to 21-bit magnetic (2,097,152 PPR), adds a carbon fiber rotor for improved thermal efficiency, and includes front-mounted holes for optional front-mount installation”, and both versions share the same 12 N·m peak torque and 216W power output (checked 31 July 2026). Moza’s compatibility guide heads one column R12 V1/V2 and ticks every wheel, pedal set, dash, shifter, and handbrake on the chart for both (checked 31 July 2026). A used listing that says only R12 could be either.
It’s not the top of the range. If maximum torque is the goal, the R16, R21, and R25 sit above it; the R12 trades top-end force for a compact base and a lower price.
No PlayStation. PC, plus Xbox once you add the ESX rim.

Alternatives to consider

Moza R9: 9Nm is enough for most drivers and costs less; the better buy without a stiff rig.
Simagic Alpha EVO: also 12Nm, from a zero-cogging motor with no magnetic detents to step over, PC only.
Fanatec ClubSport DD+: steps to 18Nm with a console license, if you want more torque and Xbox support.

Sort the rig before the base: 12Nm needs a stiff mount to feel right. The mounting guide covers what holds it, and the buying guide by budget shows where the R12 sits against the rest of the lineup.

Which platforms it works on

PC: Yes“Platform: PC” “The R12 V2 supports a wide range of racing titles on PC, including iRacing, Assetto Corsa (and Competizione), F1 series, Dirt Rally, Automobilista 2, Project CARS series, Euro/American Truck Simulator, and many more.” Moza Racing’s own listing, checked July 2026.The first line is the spec accordion headed “MOZA R12 V2 DD Base”. The second is Moza's answer to its own question “What types of sim racing games is the R12 V2 compatible with?”, which names the platform those titles run on and no other.
PlayStation: Listing does not say
Xbox: Listing does not say

Console license: Not recorded

How it connects: Plugs into a computer over USB“Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop” “USB Refresh Rate: 1000Hz”Moza Racing’s own listing, checked July 2026.Both lines are the spec accordion headed “MOZA R12 V2 DD Base”, which puts a USB port on the base beside the “Platform: PC” line the PC answer above quotes. Moza prints no sentence about connecting the base to a computer and states nothing about using it with another brand's hardware. The two parts this record's own totals buy answer differently from each other, and they are the rows under this one.
ESX wheel: Only through a wheelbase or hub“Release Method: MOZA Quick Release” “Yes, the ESX is fully compatible with mostly MOZA wheelbases, including the R3, R5, R9, R16, and R21.”that part’s own listing, checked July 2026.The wheel the enough-to-steer total buys. The first line is the spec accordion headed “Product Specifications of ESX Wheel” and the second opens Moza's answer to its own question “Is the ESX compatible with all MOZA bases?”. Moza answers what this wheel works with by naming wheel bases and names no port or cable of its own: “USB” appears twice on that listing and both are one sentence about disconnecting an Xbox controller's power cable, once in a troubleshooting accordion and once in the page's structured-data copy of it, counted case-insensitively on 2026-07-26. This site's own ESX record answers the same way off the same listing. The list Moza gives there skips the R12, which is this record's own product: the cross-reference above covers it, because Moza's support chart marks the ESX as connecting directly to the R12 V1 and V2 where this FAQ answer does not name it at all.
SRP2 pedals, throttle and brake: Plugs into a computer over USB“Yes. The SRP2 pedals connect directly to a PC via USB and are fully compatible with all sim racing brands—not just MOZA.”that part’s own listing, checked July 2026.The brake and throttle set the enough-to-drive total buys, and the one purchase in these totals whose listing states it works on other brands' hardware. Moza's whole answer to its own question “Can the SRP2 pedals work with other sim racing equipment?”. The enough-to-drive total already cites this sentence for what makes the pedals fit; here it is the pedals surviving a change of brand.

Moza names no console on this listing at all. Neither “Xbox” nor “PlayStation” nor a console generation appears anywhere on the page, so it says nothing about whether either works.

What’s in the box

MOZA R12 DD Wheel Base * 1
Power Adapter
Data Cable
Tool Kit
User Manual
Warranty Card

Read off the manufacturer’s own box list of 6 items, checked July 2026.

What that covers

Wheel: Not in the boxThe box list names the wheel base and nothing that steers it. What a wheel costs on top is the enough-to-steer total.
Pedals: Not in the boxThe box list names no pedals.
Clutch: Not in the boxThe box list names no pedals, so there is no third pedal either.
Power supply: Included“Power Adapter”
Quick release: Listing does not say“Quick Release: Supported”That names no mechanism, and the box list carries no quick release, so whether this base ships its half of a mount is unsettled.
Desk clamp: Not in the box“Desk Clamp: Optional”Moza's own word for it, and the box list carries no clamp. The $49 Table Clamp is priced into the ready-on-a-desk total.
Cables: Included“Data Cable”
Mounting hardware: Listing does not say“Fixing Method: 4-hole bottom mount”That is the base's hole pattern rather than hardware. The box list carries a Tool Kit and no bolts, T-nuts, washers, or plates, and it does not say what the Tool Kit holds, so what a rig would need is unsettled.

How it mounts

Mounting pattern: Four-hole bottom mount“Fixing Method: 4-hole bottom mount”Moza Racing’s own listing, checked July 2026.Moza's spec names four holes underneath. It gives no bolt circle, no hole spacing, and no thread size, so whether a particular rig plate lines up is a question this listing does not answer.

Desk or rig: Desk clamp or rig“The compact integrated motor design retains a standard 4-hole mount, making it easy to install on most rigs, floorstands, or with a desktop clamp for space-saving convenience.” “Desk Clamp: Optional”Moza Racing’s own listing, checked July 2026.The first is Moza's "Compact Design" block on this base's listing and the second is its spec accordion, which the clamp line under “What’s in the box” above quotes for what the box holds.“A high-strength desk clamp engineered to handle full direct drive torque — no cockpit required.” “Manufactured from 5 mm high-strength steel using precision CNC machining, engineered to withstand the maximum torque output of the MOZA R21 wheel base.” “Supports desktops up to 50 mm thick, ensuring compatibility with most common desk types and work surfaces.”Moza Racing’s own listing, checked July 2026.Read off the Table Clamp's own listing, the $49 clamp in the ready-on-a-desk total above, which names this base: "a versatile installation solution for MOZA R5, R9, and R12 direct drive wheel bases". The torque sentence is about the clamp's own steel and names Moza's R21, so it is not a statement about what an R12 needs. The 50 mm figure is the thickest desk the clamp closes on, and it is the only number either listing publishes about a desk.Moza offers a rig, a floorstand, and a desktop clamp as three ways to fit the same 4-hole mount, and calls the desk clamp optional rather than naming any of the three as required. Moza names no torque at which a desk stops holding this base. The 12 Nm desk-clamp threshold stated elsewhere on this site is editorial and not Moza's, and the owner reports it rests on give about 8 Nm comfortable on a clamp and roughly 13 Nm as its limit.

Optional upgrades

“Upgrade for the Ultimate Simulation” Moza Racing’s own words, naming 6 parts, checked July 2026.

None of these is a part of the totals on this record. The three steering wheels and the two pedal sets are dearer alternatives to the $139 ESX and the $149 SRP2 set those totals buy.

E-Stop Switch: $49US retail price in USD, checked July 2026.“E-stop: Optional”That is the base's own spec line on the same listing, and this is the part it leaves open.
MOZA GS V2P GT Wheel: $399US retail price in USD, checked July 2026.
MOZA FSR2 Formula Wheel: $649US retail price in USD, checked July 2026.
MOZA KS Steering Wheel: $279US retail price in USD, checked July 2026.
MOZA CRP2 Load Cell Pedals (Throttle+Brake): $399US retail price in USD, checked July 2026.
MOZA mBooster Active Pedal Set (with CRP2 Throttle): $999US retail price in USD, checked July 2026.

Frequently asked questions

Moza R9 or R12: is 12Nm worth it?

9Nm on the Moza R9 is enough for most drivers and costs less, so the R12 is for people who specifically want headroom. The extra 3Nm gives heavier GT3 and prototype weight and more margin before the base runs out under big kerbs and high-downforce loads. The catch is the mount: 12Nm will flex a desk clamp, so the R12 only makes sense if you have or will build a rigid rig. If you don't, the R9 is the smarter buy.

What rig does the Moza R12 need?

A rigid one. At 12Nm the base puts real load through whatever it's bolted to, and a desk clamp or flimsy stand will flex, which smears the feel and rattles. Mount the R12 to an aluminum-profile rig or a stiff cockpit and follow the mounting guide for hardware and noise. The base uses a standard 4-hole mount, so it bolts to most rigs directly.

Does the Moza R12 come with a steering wheel?

No, it's base only at around $469. You buy a rim separately. The MOZA Quick Release fits any Moza wheel, and pedals and a dash plug into the base's ports.

Does the Moza R12 work on Xbox or PlayStation?

PC always. Xbox works with the Xbox-licensed MOZA ESX rim, because the chip is in the wheel, not the base. No PlayStation. For PS5 look at the Fanatec GT DD Pro, Logitech RS50, or Thrustmaster T598.
